TTGO T-Beam V1.1 ESP32 LORA

Description

الوصف التفصيلي

تعتبر هذه الوحدة لوحة تطوير متعددة الاستخدامات تم تصميمها لمشاريع إنترنت الأشياء (IoT)، التتبع GPS، والتواصل اللاسلكي. تعتمد الوحدة على شريحة ESP32 التي تضم إمكانيات الواي فاي والبلوتوث. كما تتميز بتقنية LoRa للتواصل طويل المدى وتتضمن وحدة GPS من نوع NEO-6M لتتبع الموقع. تأتي اللوحة غير ملحومة مما يوفر المرونة للتخصيص والاستخدام في تطبيقات مختلفة. تحتوي أيضًا على حامل لبطارية 18650 لتوفير حلول الطاقة المحمولة.

Detailed Description

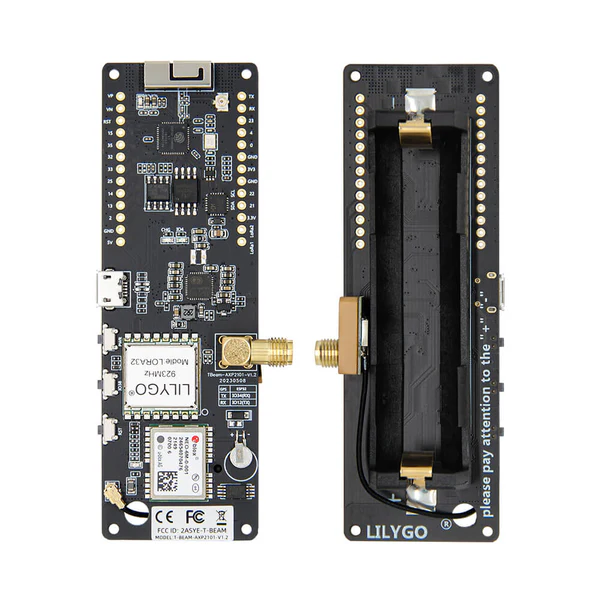

The TTGO T-Beam board is built around the ESP32 chip, which integrates WiFi and Bluetooth capabilities. It features LoRa technology for long-range communication and includes a NEO-6M GPS module for location tracking. The board is unsoldered, allowing for customization and flexibility in various applications. It also comes with a 18650 battery holder for portable power solutions.

Key Features

• ESP32 Chip: Dual-core processor with integrated WiFi and Bluetooth.
• LoRa Technology: Supports long-range communication at 433MHz.
• NEO-6M GPS Module: Provides accurate location tracking with a ceramic antenna.
• 18650 Battery Holder: Enables portable power with a rechargeable lithium-ion battery.
• IPEX Connector: For external antenna connection to enhance signal strength.
• CH9102F Chip: Ensures reliable USB-to-serial communication.
• Unsoldered Design: Allows for customization and easy integration into projects.

Specifications

• Frequency: 433MHz (LoRa)
• Power Supply: 18650 lithium-ion battery or USB
• Flash Memory: 4MB
• Interfaces: GPIO, ADC, DAC, SPI, I2C, UART
• Operating Voltage: 1.8V to 3.7V
• Transmit Power: Up to +20dBm
• GPS Module: NEO-6M with ceramic antenna
• USB Interface: Type-C

Package Content

• 1 x TTGO T-Beam V1.1 ESP32 LoRa 433MHz Module
• 1 x NEO-6M GPS Module with Ceramic Antenna
• 1 x 18650 Battery Holder (unsoldered)
• 1 x IPEX Connector for External Antenna
• 1 x USB Type-C Cable (optional, depending on the seller)
• 1 x User Manual or Quick Start Guide (optional, depending on the seller)

Applications

• IoT Projects: Ideal for smart agriculture, environmental monitoring, and remote sensing.
• GPS Tracking: Suitable for vehicle tracking, asset tracking, and navigation systems.
• Wireless Communication: Perfect for long-range data transmission in rural or remote areas.
• Educational Use: Great for students and hobbyists exploring IoT and wireless technologies.
