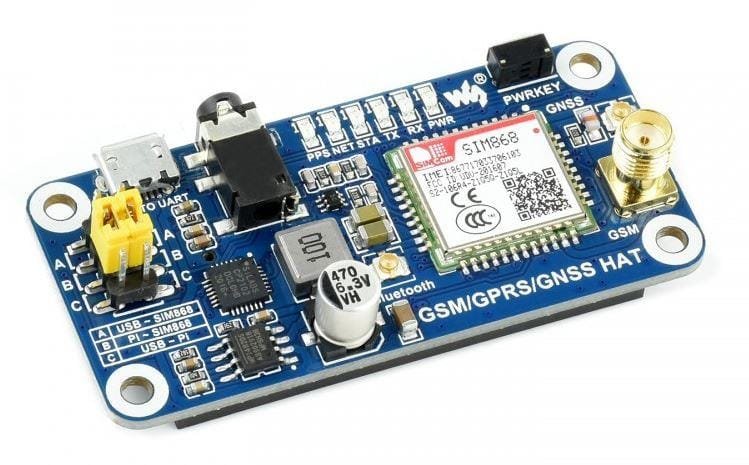

SIM868 Raspberry PI Expansion Board

Description

لوصف الكامل

تُعد وحدة SIM868 لوحة تطوير متعددة الوظائف مصممة لتتوافق مع Raspberry Pi وArduino. تدمج وظائف GSM وGPRS وGPS وBluetooth، مما يجعلها مثالية لتطبيقات إنترنت الأشياء. تتيح هذه الوحدة المدمجة والفعالة للمستخدمين إجراء المكالمات الهاتفية، إرسال الرسائل النصية، الوصول إلى الإنترنت اللاسلكي، تحديد المواقع العالمية، ونقل البيانات عبر البلوتوث.

Description:

The SIM868 module is a versatile development board designed for Raspberry Pi and Arduino compatibility. It integrates GSM, GPRS, GPS, and Bluetooth functionalities, making it ideal for IoT applications. This compact and efficient module allows users to make phone calls, send SMS, access wireless internet, perform global positioning, and transfer data via Bluetooth.

Key Features:

• Multi-Functionality: Supports GSM, GPRS, GPS, and Bluetooth for diverse applications.
• Standard GPIO Header: Compatible with Raspberry Pi series boards.
• Communication Protocols: Includes SMS, phone calls, GPRS, HTTP, FTP, MMS, and email.
• Positioning: GPS, COMPASS, Glonass, and LBS base station positioning.
• Bluetooth 3.0: Enables data transfer through Bluetooth.
• Debugging: Onboard USB-to-UART converter for easy debugging.
• SIM Card Slot: Supports 1.8V/3V SIM cards.
• RTC Backup: Real-time clock with backup battery holder.
• LED Indicators: Six LEDs to display module status.
• AT Commands: Controlled via AT commands for seamless operation.

Detailed Specifications:

• GSM/GPRS Bands: Quad-band (850/900/1800/1900 MHz).
• GPRS Connectivity: Multi-slot class 12 with downlink and uplink speeds up to 85.6 kbps.
• GNSS Receiver: 33 tracking channels, 99 acquisition channels, GPS L1 C/A code.
• Bluetooth: Compliant with Bluetooth 3.0 + EDR.
• Operating Voltage: 5V.
• Temperature Range: Operating (-40°C to 85°C), Storage (-45°C to 90°C).
• Dimensions: 30.2mm x 65mm.

Package Contents:

• 1 x SIM868 Module.
• 1 x USB-to-UART Converter.
• 1 x RTC Backup Battery Holder.
• 6 x LED Indicators.
• 1 x SIM Card Slot.

Applications:

• IoT Projects: Ideal for smart devices and IoT applications.
• Global Positioning: Accurate GPS tracking for navigation systems.
• Wireless Communication: Enables SMS, calls, and internet access.
• Bluetooth Data Transfer: Efficient data sharing via Bluetooth.

Additional Information

The SIM868 module is a reliable and cost-effective solution for developers and hobbyists. Its compact design and rich features make it suitable for various applications, including robotics, vehicle tracking, and remote monitoring systems.
