Raspberry Pi 5 Active Cooler

Description

المميزات الرئيسية:

• مبدد حراري: مبدد حراري مصنوع من الألومنيوم المؤكسد.
• مروحة: مروحة ذات تحكم حراري مثبتة على المبدد الحراري بواسطة ثلاث مسامير.
• التثبيت: دبابيس دفع محملة بنابض لتثبيت المبدد الحراري بسهولة على Raspberry Pi 5.
• وسادات حرارية: وسادات حرارية مسبقة التطبيق لنقل الحرارة بكفاءة.

Description:

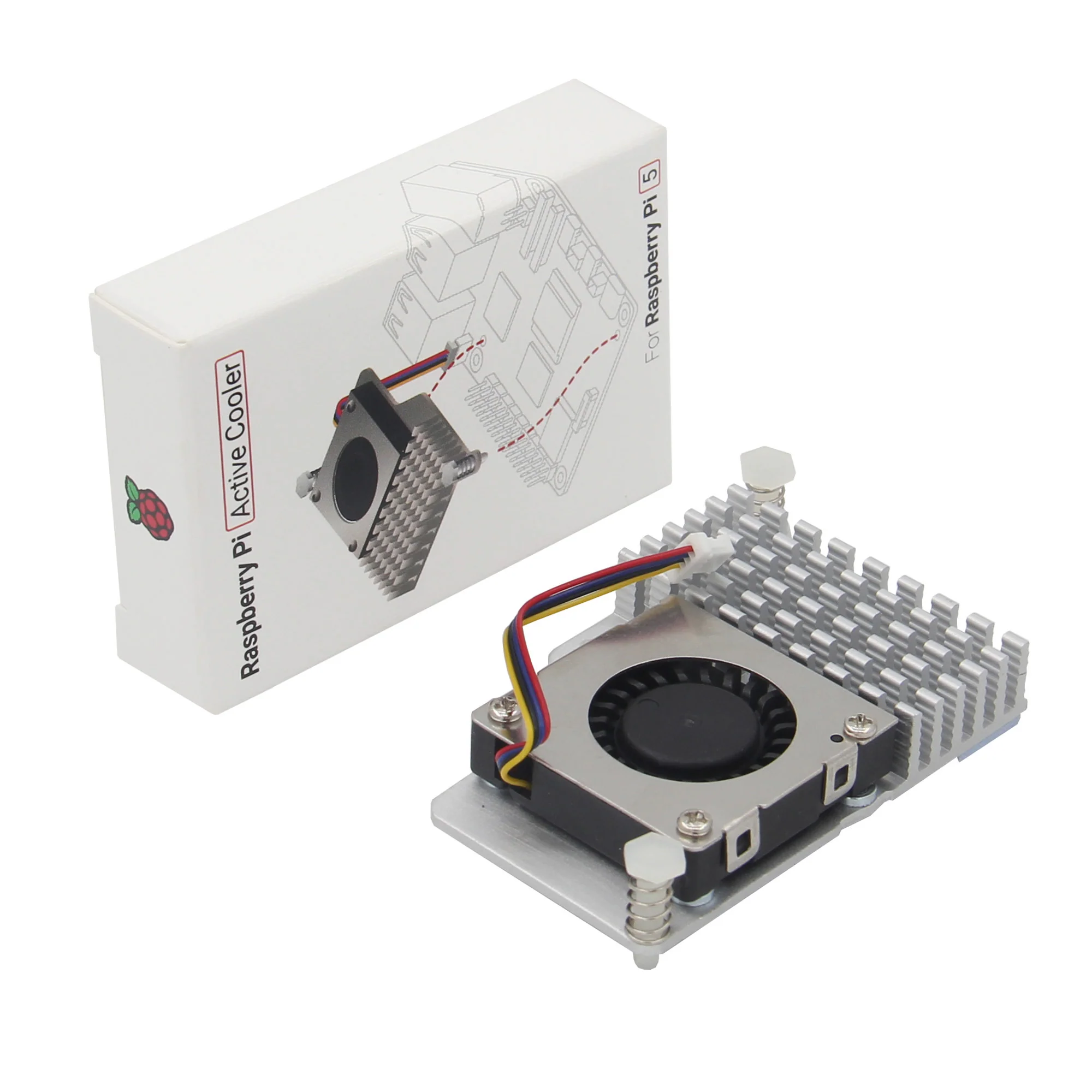

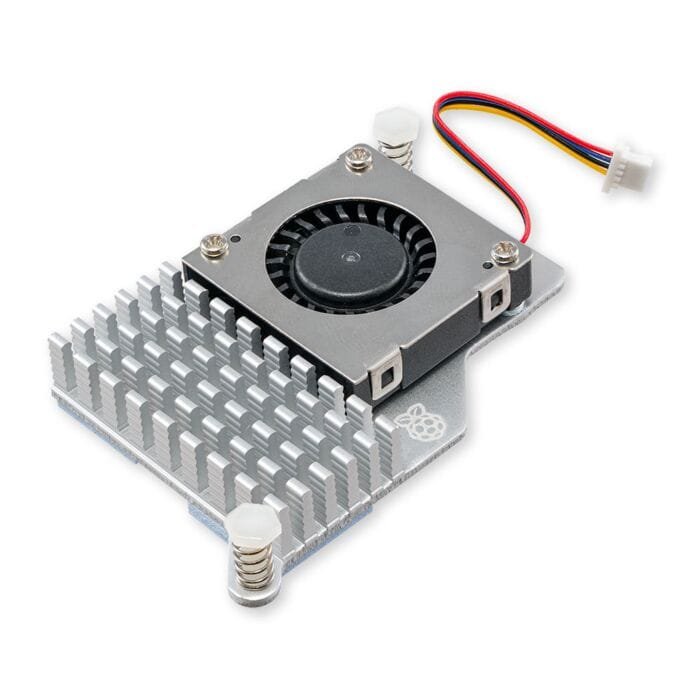

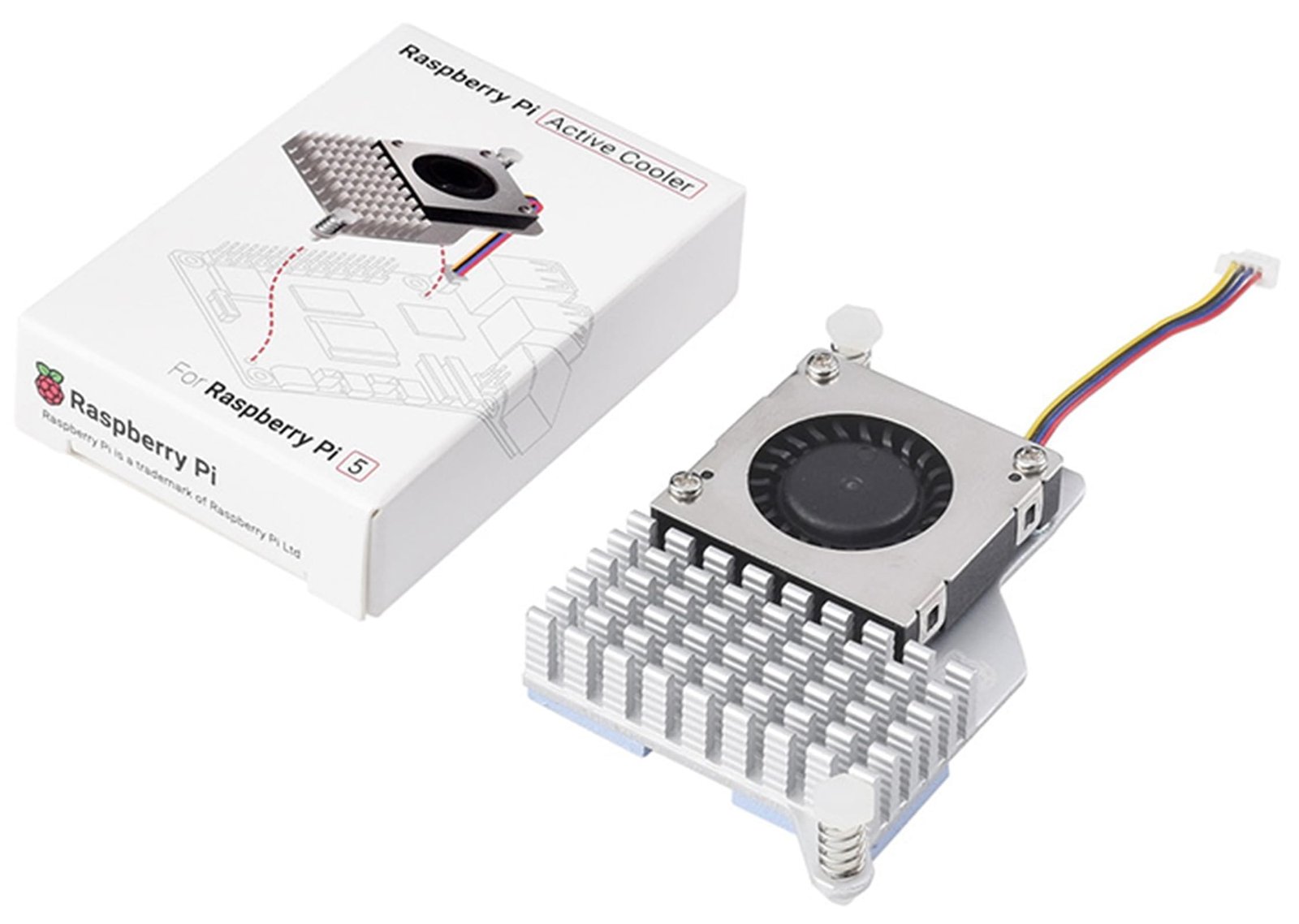

The Original Raspberry Pi 5 Official Active Cooler is a dedicated clip-on cooling solution designed specifically for the Raspberry Pi 5. It combines an aluminum heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads.

Key Features:

• Heatsink: Single-piece anodized aluminum heatsink.
• Fan: Heatsink-mounted, temperature-controlled blower fan attached by three screws.
• Mounting: Spring-loaded push pins for easy mounting onto the Raspberry Pi 5.
• Thermal Pads: Pre-applied thermal pads for efficient heat transfer.

Specification:

• Input Voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5.
• Fan Speed Control: Pulse width modulation control with tachometer.
• Maximum Airflow: 1.09 CFM.
• Maximum Fan Speed: 8000 RPM ± 15%.
• Material: Anodized aluminum.

Package Content:

• 1 × Original Raspberry Pi 5 Official Active Cooler
• 1 × Quick Start Guide
• 1 × Safety Leaflet

Applications:

• Cooling Solution: Ideal for keeping the Raspberry Pi 5 cool during heavy workloads and overclocking.
• Enhanced Performance: Prevents thermal throttling, ensuring optimal performance.

Additional Information:

The Original Raspberry Pi 5 Official Active Cooler is designed to provide reliable and efficient cooling for your Raspberry Pi 5. It is recommended not to remove the Active Cooler once it is fitted, as removal may degrade the push pins and thermal pads, potentially leading to product damage.

Reference Website:

For more information and detailed specifications, visit the official Raspberry Pi website: Raspberry Pi
