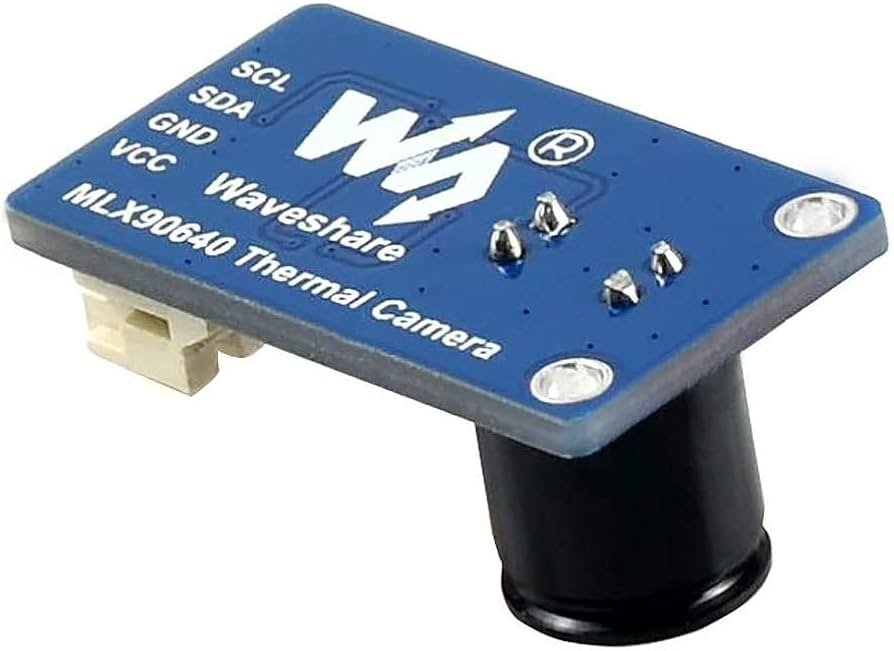

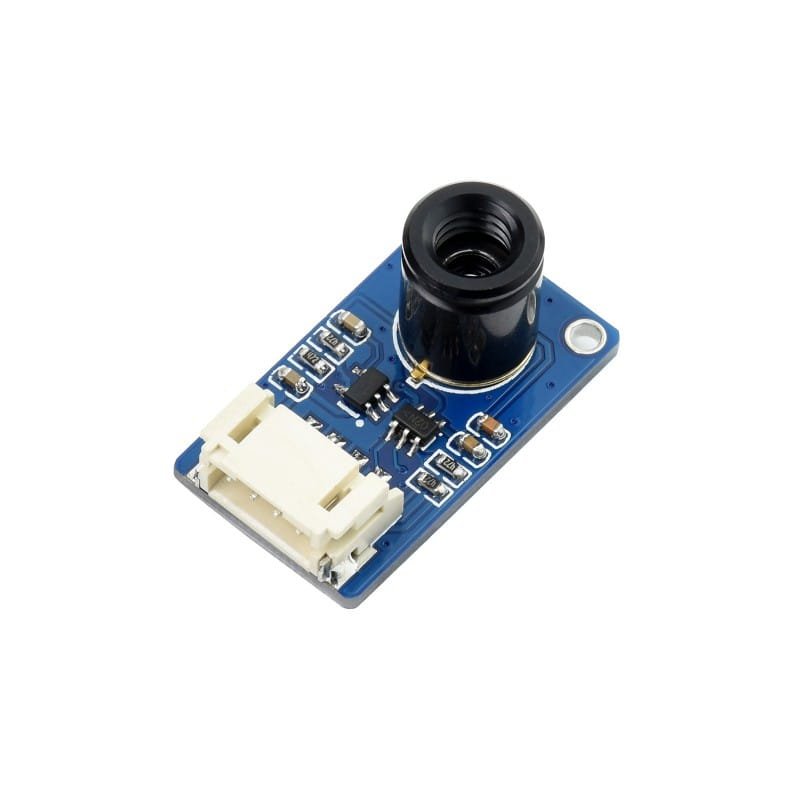

MLX90640 Thermal Imaging Camera

Description

الوصف

كاميرا التصوير الحراري MLX90640 هي حل مدمج، غير متلامس وبتكلفة منخفضة للتصوير الحراري. تتميز بمصفوفة بكسلات 32×24 وزاوية رؤية 55 درجة، مما يجعلها مناسبة لمجموعة متنوعة من التطبيقات الصناعية والتحكم الذكي. تستخدم الكاميرا واجهة I2C للتواصل وتتوافق مع جهد التشغيل 3.3 فولت و 5 فولت.

Description

The MLX90640 IR Array Thermal Imaging Camera is a compact, non-contact, and cost-effective thermal imaging solution. It features a 32×24 pixel array and a 55° field of view, making it suitable for various industrial and intelligent control applications. The camera uses an I2C interface for communication and is compatible with 3.3V and 5V operating voltages.

Key Features

• Pixel Array: 32×24 pixels
• Field of View: 55° (horizontal) × 35° (vertical)
• Interface: I2C, configurable to fast mode (up to 1MHz data rate)
• Noise Equivalent Temperature Difference (NETD): 0.1K RMS @ 1Hz refresh rate
• Operating Voltage: 3.3V/5V
• Power Consumption: < 23mA
• Programmable Frame Rate: 0.5Hz to 64Hz (0.25 to 32FPS)

Specifications

• Operating Temperature: -40°C to 85°C
• Target Temperature Range: -40°C to 300°C
• Absolute Accuracy: ±2°C (ambient temperature 0 to 50°C)

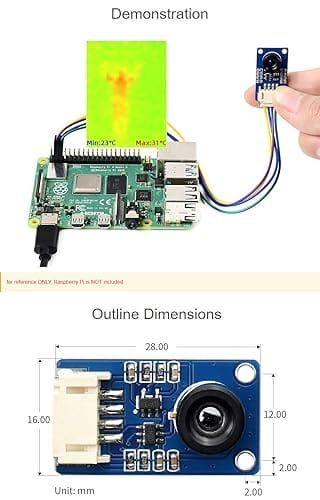

• Dimensions: 28 × 16mm
• Mounting Hole Size: 2.0mm

Package Content

• MLX90640 IR Array Thermal Imaging Camera: 1 unit
• Development Resources and Manual: Examples for Raspberry Pi, Arduino (ESP32), and STM32

Applications

• High Precision Non-Contact Temperature Measurements: Ideal for accurate temperature detection
• IR Thermal Imaging Devices: Suitable for creating thermal images
• Smart Home and Intelligent Building: Useful for intelligent lighting and temperature control
• Industrial Temperature Control: Perfect for monitoring and controlling industrial temperatures
• Security and Safety: Effective for intrusion and movement detection

Additional Information

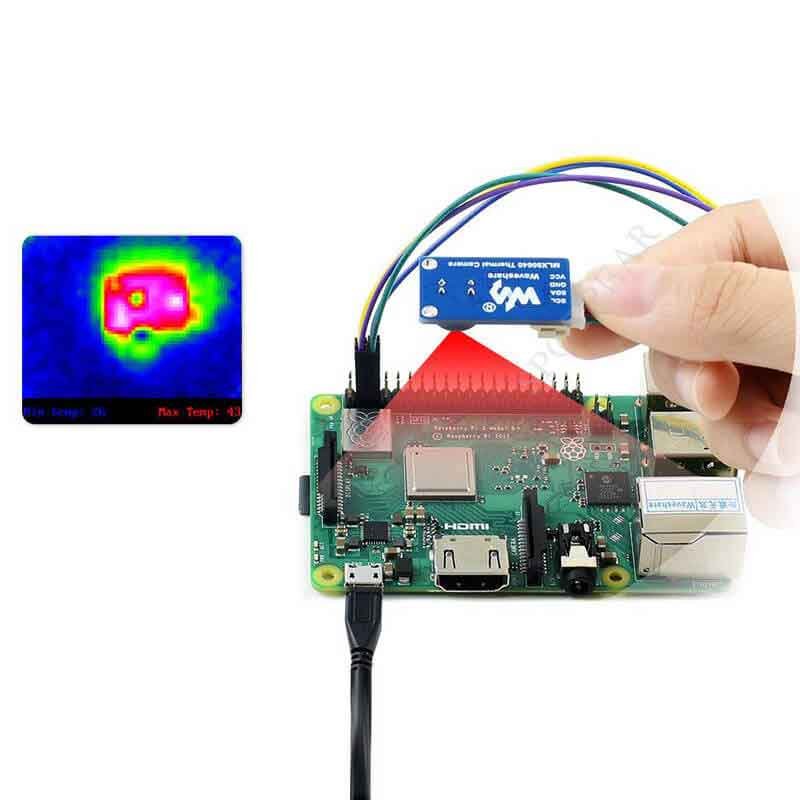

The MLX90640 IR Array Thermal Imaging Camera is designed for easy integration into various applications. It comes with development resources and manuals, making it suitable for use with Raspberry Pi, Arduino (ESP32), and STM32 platforms. The camera’s small size and low power consumption make it an excellent choice for a wide range of projects.
