L76X GPS Module

Description

الوصف

وحدة GPS L76X هي وحدة GPS متعددة الاستخدامات وعالية الأداء تدعم أنظمة GNSS متعددة، بما في ذلك GPS و BDS و QZSS. تتميز بتصميم مدمج وتأتي مع بطارية مدمجة للحفاظ على معلومات الأقمار الصناعية وتمكين بدء التشغيل السريع. هذه الوحدة مثالية لمجموعة متنوعة من التطبيقات، بما في ذلك تتبع المركبات، تتبع الأصول، والتحكم الصناعي.

Description

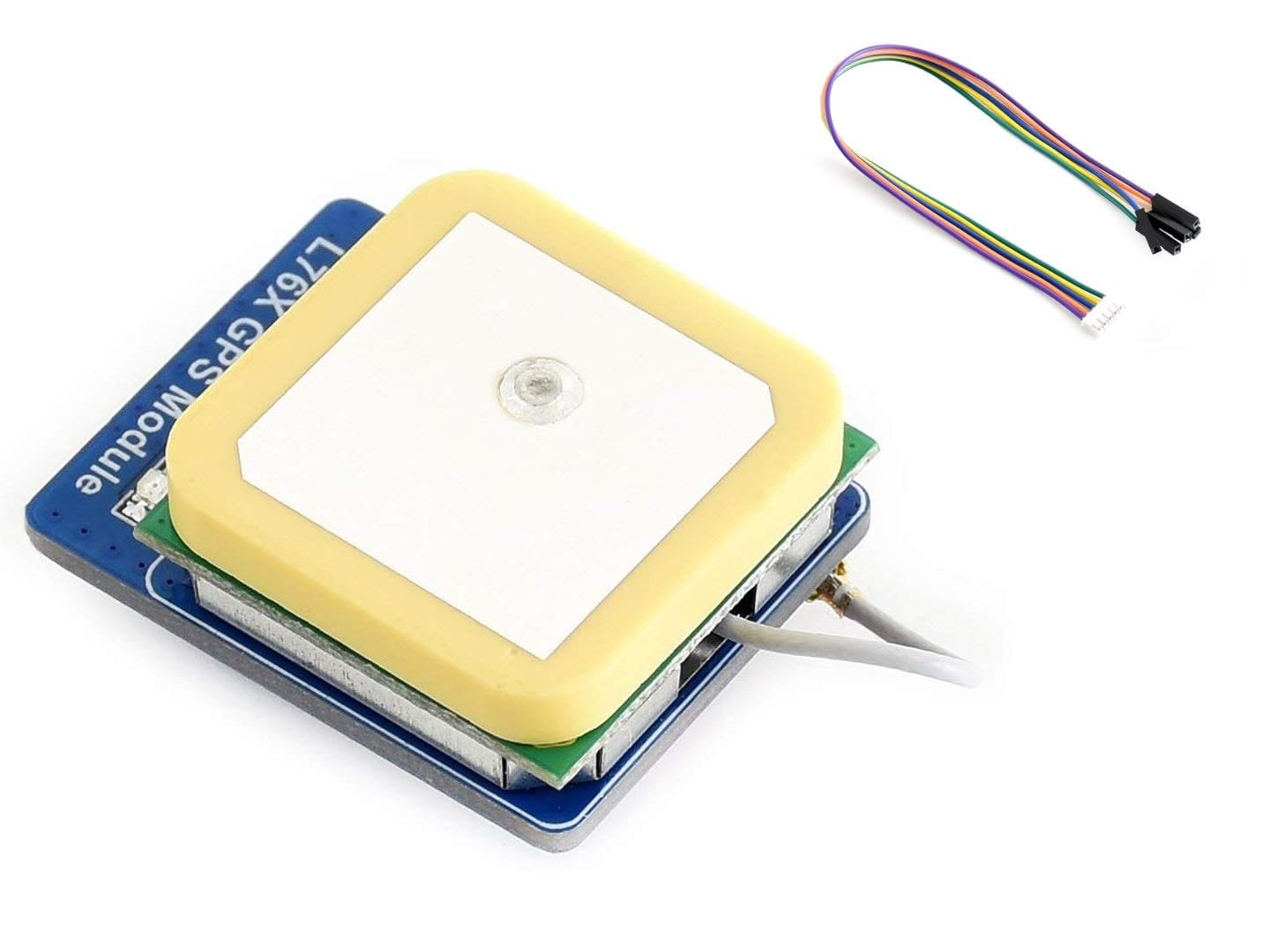

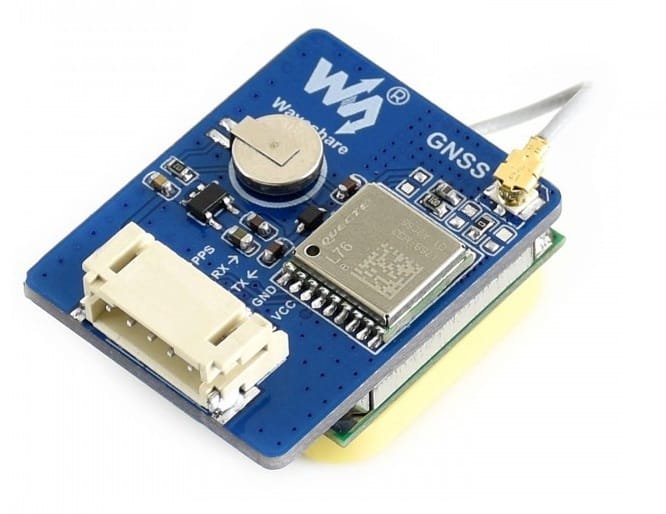

The L76X GPS Module is a versatile and high-performance GPS module that supports multiple GNSS systems, including GPS, BDS, and QZSS. It features a compact design and comes with a built-in battery for preserving ephemeris information and enabling hot starts. This module is ideal for various applications, including vehicle tracking, asset tracking, and industrial control.

Key Features

• Multi-GNSS Support: Supports GPS, BDS, and QZSS
• High Accuracy: Provides accurate positioning with a horizontal position accuracy of less than 2.5 meters
• Fast Positioning: Quick time-to-first-fix with cold starts in less than 15 seconds, warm starts in less than 5 seconds, and hot starts in less than 1 second
• Low Power Consumption: Efficient power usage with a current consumption of less than 23mA
• Built-in Battery: Includes a battery holder for an ML1220 rechargeable battery

Specifications

• Communication Interface: UART
• Baud Rate: 4800~115200bps (9600bps by default)
• Update Rate: 1Hz (default), 10Hz (max)
• Protocols: NMEA 0183, PMTK
• Operating Voltage: 3.3V/5V
• Operating Temperature: -40°C to 85°C
• Dimensions: 28 × 16mm

Package Content

• L76X GPS Module: 1 unit
• Battery Holder: Supports ML1220 rechargeable battery
• Development Resources and Manual: Examples for Raspberry Pi, Arduino (ESP32), and STM32

Applications

• Vehicle Tracking: Ideal for tracking vehicles in real-time
• Asset Tracking: Suitable for monitoring and tracking valuable assets
• Industrial Control: Perfect for industrial applications requiring precise positioning
• Smart Home and Intelligent Building: Useful for intelligent lighting and temperature control
• Security and Safety: Effective for intrusion and movement detection

Additional Information

The L76X GPS Module is designed for easy integration into various projects and applications. It comes with comprehensive development resources and manuals, making it suitable for use with Raspberry Pi, Arduino (ESP32), and STM32 platforms. The module’s small size and low power consumption make it an excellent choice for a wide range of projects.
