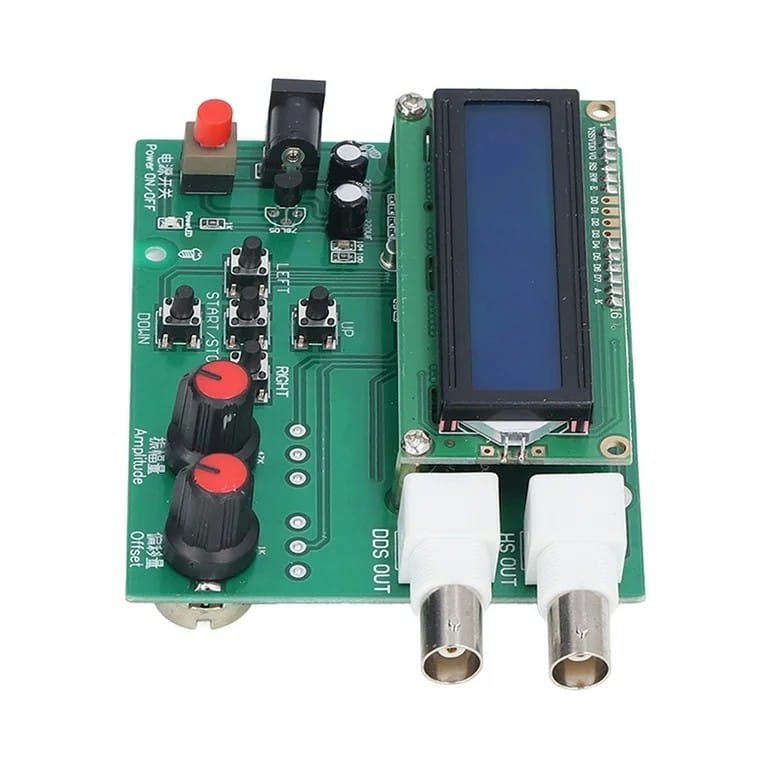

Function signal generator

Description

The DDS Function Signal Generator is a versatile and high-performance signal generator, perfect for a wide range of applications in electronics, testing, and DIY projects. With its advanced features and reliable performance, it is an excellent choice for both hobbyists and professionals.

Key Features:

• Wide Frequency Range: Capable of generating signals with a frequency range of 1Hz to 65KHz, providing flexibility for various applications.
• Multiple Waveforms: Supports multiple waveforms including sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave, and noise wave.
• High-Speed Output: Offers a high-speed frequency (HS) output up to 8MHz, ensuring precise signal generation.

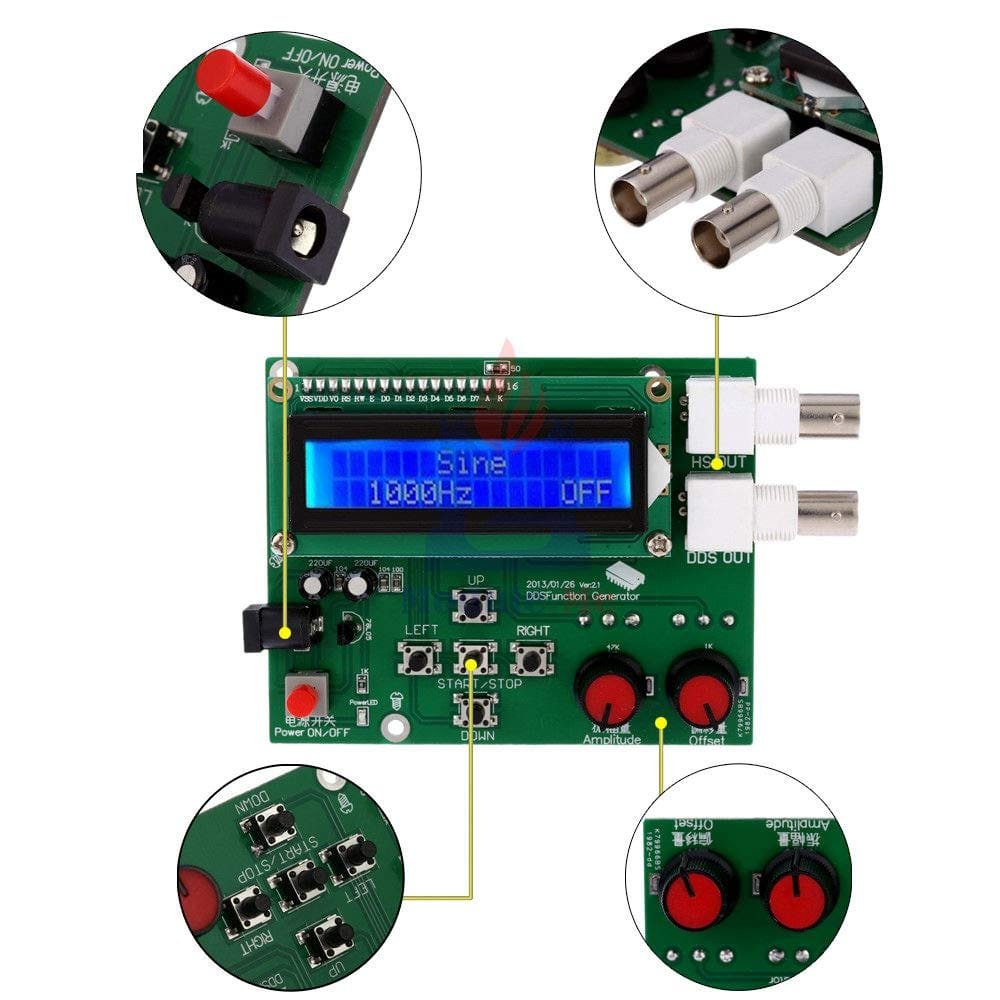

• Adjustable Amplitude and Offset: The amplitude and offset of the DDS signal can be adjusted separately using two potentiometers.

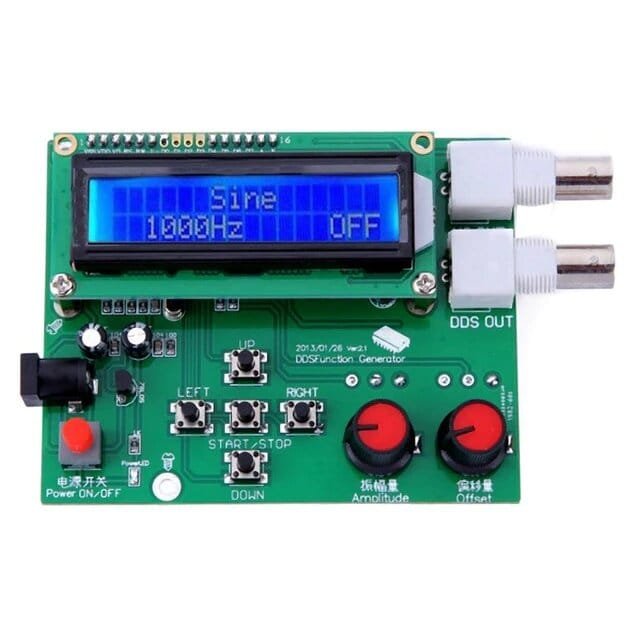

• LCD Display: Features a 1602 LCD display for clear and easy reading of the current frequency and other information.
• Memory Function: Automatically restores the last used configuration upon power-up, making it convenient for repeated use.
• Compact and Portable: Small size and lightweight design make it easy to carry and integrate into various projects.

Specifications:

• Operating Voltage: DC 7-9V
• Frequency Range: 1Hz-65KHz
• High-Speed Output: Up to 8MHz
• Waveforms: Sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave, noise wave
• Amplitude Adjustment: 0.5Vpp-14Vpp
• Offset Adjustment: 0.5pp-5Vpp
• Display: 1602 LCD
• Dimensions: Compact and portable design

Applications:

• Electronics Testing: Ideal for testing and troubleshooting electronic circuits and components.
• DIY Projects: Perfect for DIY enthusiasts working on various electronics and signal generation projects.
• Educational Use: Great for students and educators learning about signal generation and waveform analysis.
• Scientific Research: Suitable for scientific research that requires precise and stable signal generation.

The DDS Function Signal Generator is a versatile and reliable tool that can enhance the performance of your electronics projects. Whether you’re testing circuits, working on DIY projects, or conducting scientific research, this signal generator offers the features and performance you need.
