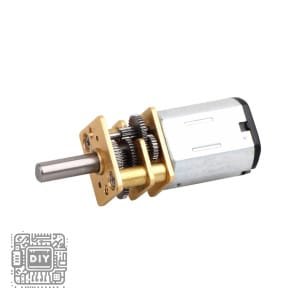

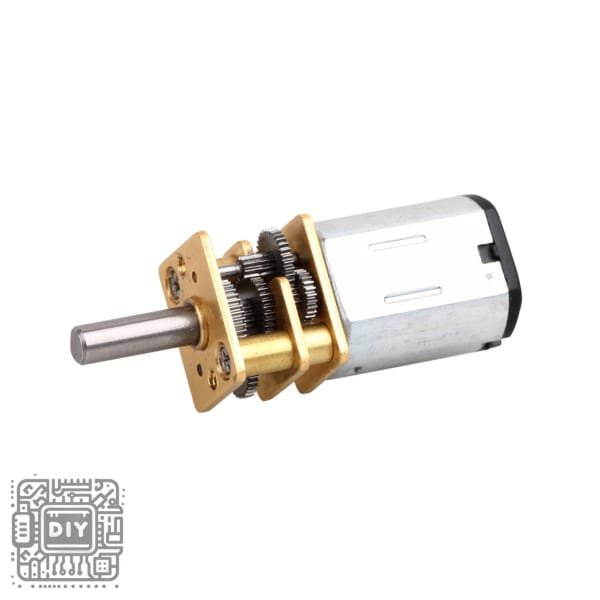

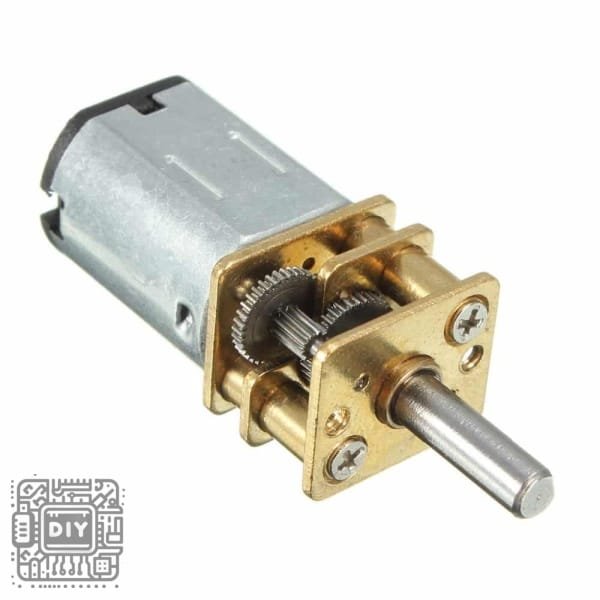

DC12V N20 Micro Metal Gear Motor 100rpm

Description

الوصف الكامل

يعد محرك DC12V N20 Micro Metal Gear Motor خيارًا صغير الحجم وفعالًا ومصممًا للتطبيقات التي تحتاج إلى عزم دوران عالي وسرعات منخفضة. يتميز بحجمه الصغير وبنيته القوية، مما يجعله مثاليًا لتطبيقات الروبوتات، المشاريع اليدوية، والآليات الدقيقة. يتضمن المحرك صندوق تروس مدمجًا يضمن تشغيلًا سلسًا وتحكمًا دقيقًا.

Full Description

The DC12V N20 Micro Metal Gear Motor is a compact and efficient motor designed for applications requiring high torque and low speed. Its small size and robust construction make it ideal for robotics, DIY projects, and other precision-driven mechanisms. The motor features a built-in gearbox that ensures smooth and controlled operation.

Key Features

• Voltage: Operates at 12V DC.
• Speed: 100 RPM (rotations per minute).
• Torque: High torque output suitable for demanding applications.
• Compact Design: Small and lightweight, making it easy to integrate into tight spaces.
• Durability: Metal gearbox ensures long-lasting performance.
• Versatility: Suitable for a wide range of applications, including robotics, automation, and hobby projects.

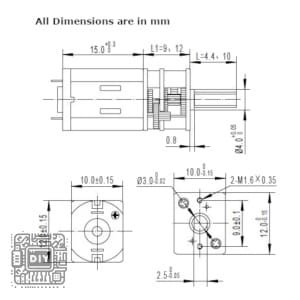

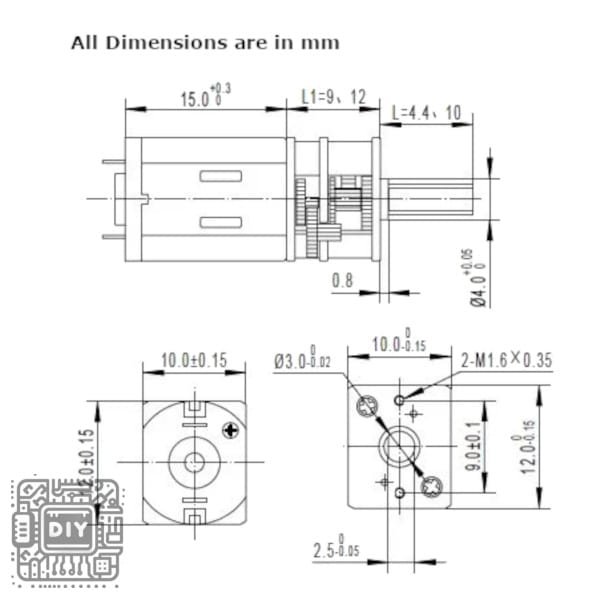

Specifications

• Rated Voltage: 12V DC.
• Voltage Range: 6V–12V.
• Speed: 100 RPM.
• Shaft Diameter: 3mm.
• Motor Diameter: 12mm.
• Length (without shaft): 26mm.
• Output Shaft Length: 10mm.
• Screw Size: M3.
• Gearbox Type: Metal gear for enhanced durability and performance.

Package Content

• 1 × DC12V N20 Micro Metal Gear Motor Pololu 100rpm.

Additional Information

• Applications: Ideal for small robotic systems, motorized toys, and precision control mechanisms.
• Ease of Use: Can be easily connected to microcontrollers or motor drivers for seamless operation.
• Customization: Compatible with various mounting brackets and wheels for enhanced functionality.
