3 Channel Relay Module for Raspberry Pi 3B+/4B

Name: 3 Channel Relay Module for Raspberry Pi
SKU: DIYS10206
Availability: InStock

وحدة 3 Channel Relay Module Shield هي لوحة توسعة متعددة الاستخدامات وموثوقة مصممة خصيصًا لأجهزة Raspberry Pi 3B+/4B. تتيح هذه الوحدة لجهاز Raspberry Pi التحكم في الأجهزة ذات التيار العالي، مما يجعلها خيارًا مثاليًا لمشاريع أتمتة المنازل الذكية. بفضل المرحلات المدمجة وميزات العزل، تضمن الوحدة تشغيلًا آمنًا وفعالًا.

Description

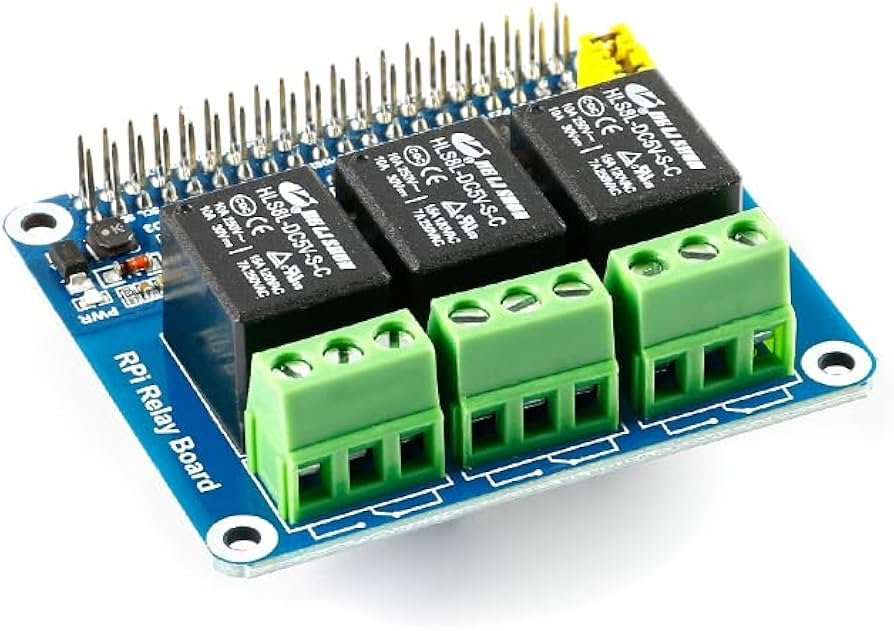

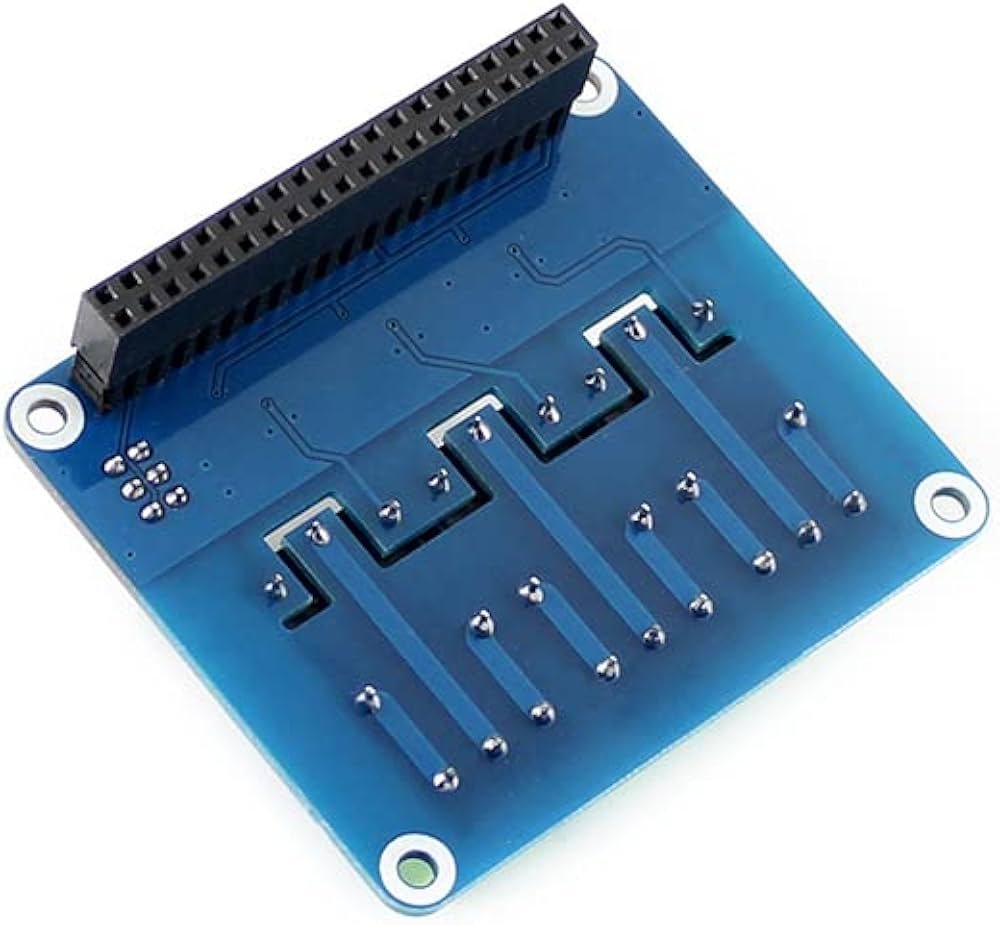

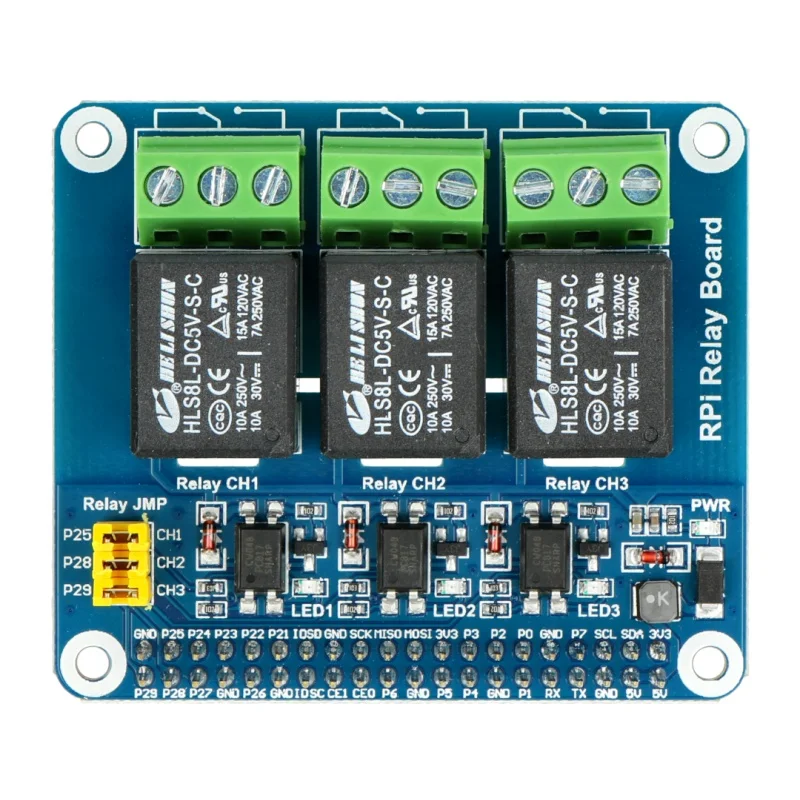

The 3 Channel Relay Module Shield is a versatile and reliable expansion board designed for Raspberry Pi 3B+/4B. It allows your Raspberry Pi to control high-current devices, making it an ideal choice for smart home automation projects. With its onboard relays and isolation features, it ensures safe and efficient operation.

Key Features

Relay Channels: Three independent relays for controlling multiple devices.
Load Capacity: Supports up to 10A at 30V DC or 250V AC per channel.
Isolation: Optocoupler isolation to prevent interference from high-voltage circuits.
GPIO Control: Relays can be controlled via Raspberry Pi GPIO pins.
LED Indicators: Onboard LEDs to display the status of each relay.
Compatibility: Designed for Raspberry Pi 3B+, 4B, and other models with a 40-pin GPIO header.
Durability: High-quality relays for long-lasting performance.

Specifications

Parameter	Details
Relay Channels	3
Load Capacity	10A at 30V DC / 250V AC
Control Interface	GPIO pins
Isolation	Optocoupler
LED Indicators	Yes
Power Supply	5V (via Raspberry Pi GPIO)
Dimensions	Compact and easy to mount
Compatibility	Raspberry Pi 3B+, 4B, and other 40-pin models

Package Content

1 x 3 Channel Relay Module Shield.
User manual and example code available online.

Applications

Smart Home Automation: Control lights, fans, and other appliances.
Industrial Automation: Manage high-current devices safely.
DIY Projects: Build custom automation systems with ease.
Educational Use: Learn about relays and GPIO control.

Additional Information

The 3 Channel Relay Module Shield is perfect for anyone looking to create a smart home or automate devices. Its optocoupler isolation ensures safety, while its compatibility with Raspberry Pi makes it a user-friendly choice for beginners and experts alike.
